Carbon steel post

Photo Gallery



Extra documentations

Steel post
Steel post ecological

Post made of rolled steel and rolled steel 15/10 and 20/10 have the characteristic to be particularly resistant to chemical and weathering agents, representing the winning answer to the needs of modern viticulture. The construction technologies produce indeed leading products in the paling sector for vineyards in Italy. The special "U" profile with stiffening veins greatly increases the resistance to twisting, bending and cutting than traditional stakes. This improves the non-deformability of the espalier even in particularly productive vineyards. The open form of the profile prevents standing water in contact with the ground, providing greater durability and the construction material gives it a lightness that facilitate the safe handling and transportation. The parallel slots on the sides allow a comfortable and easy installation of wires and their replacement in case of accidental breakage and a number of bosses at the base of the pole improve its anchoring to the ground. It is also important the cost-effectiveness of these types of post, the significant economy both in the assembly of the espalier and in the greater durability of the post, which can be reused at the end of the production cycle of the vineyard. The shape and the mechanical resistance facilitate the moving forward of the straddle harvesters along the rows without causing damages to machinery and plants.

Covered with a revolutionary double Aluminum-Nickel-Copper-Zinc and polymer cover, the steel post is 3 to 7 times more corrosion resistant than conventional galvanized steel post, as shown by the evidence of resistance to salt spray.

Eco-friendly red paint for further protection of the part assigned to the planting, etching notches to 70 cm, 80 cm and 90 cm for easy installation up to the desired depth, new geometry of the profile with reinforcing ribs to provide greater mechanical strength , innovative side hooks with anti-release system are the features that make the new steel post the category leader.

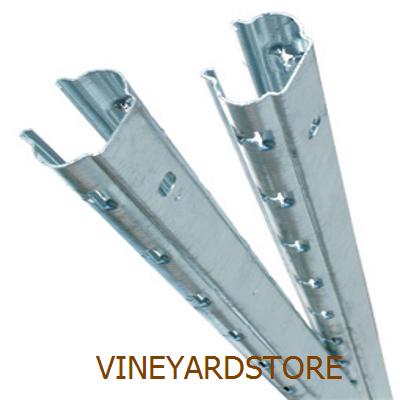

STEEL POST

tl_files/catalogo/pali_acciaio/galleria/pali_acciaio.jpg

tl_files/catalogo/pali_acciaio/galleria/profilo_palo_acciaio1.gif

Post created through profiling, molding and subsequent dip painting, starting from structural steel strips high yield DX51D.
Steel is 100% recyclable and therefore there are no disposal problems.



CHARACTERISTICS AND POSSIBLE SIZES:

SECTION THICKNESS WEIGHT PER MT

 mm. 52x40 mm. 1.30 Kg 1.23
 mm. 52x40 mm. 1.65 Kg 1.60
 mm. 62x40 mm. 1.30 Kg 1.40
 mm. 62x40 mm. 1.65 Kg 1.78

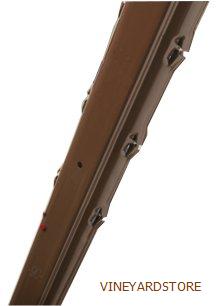

ECO-FRIENDLY STEEL POST

tl_files/catalogo/pali_acciaio/galleria/ecologico.jpg

tl_files/catalogo/pali_acciaio/galleria/profilo_palo_acciaio1.gif

Post achieved through profiling and molding.

The steel is 100% recyclable and therefore there are no disposal problems.

The post surface is protected by a hot galvanized coating and a further cover of about 60 micron thick in eco-friendly polyester in brown colour, applied with powder coating technique.



CHARACTERISTICS AND POSSIBLE SIZES:

SECTION THICKNESS WEIGHT PER MT

 mm. 52x40 mm. 1.30 Kg 1.23
 mm. 52x40 mm. 1.65 Kg 1.60
 mm. 62x40 mm. 1.30 Kg 1.40
 mm. 62x40 mm. 1.65 Kg 1.78

STEEL POLE
Item codeItem description
1P34004 CARBON STEEL POST MT 2.20 MM 52X40 SP 1,3

1P34014 CARBON STEEL POST MT 2.50 MM 52X40 SP 1,65

1P34024 CARBON STEEL POST MT 2.50 MM 62X40 SP 1,3

1P34034 CARBON STEEL POST MT2.70 MM 62X40 SP 1.30

1P34044 CARBON STELL POST M 2.80 MM 62X40 SP 1.30

1P34054 CARBON STELL POST M 2.50 MM 62X40 SP 1.65

1P34064 CARBON STELL POST M 2.70 MM 62X40 SP 1.65

1P34074 CARBON STELL POST M 2.80 MM 62X40 SP 1.65

1P34084 CARBON STELL POST M 3.00 MM 62X40 SP 1.65

1P34094 CARBON STELL POST M 2.70 MM 52X40 SP 1.65

1P34104 CARBON STELL POST M 2.80 MM 52X40 SP 1.65

1P34114 CARBON STELL POST M 2.50 MM 52X40 SP 1.30

ECO-FRIENDLY STEEL POLE
Item codeItem description
1P44016 ECO-FRIENDLY STEEL POST MM 62X40 SP 1.65 MT 2.50

1P44026 ECO-FRIENDLY STEEL POST MM 62X40 SP 1.65 MT 2.70

1P44036 ECO-FRIENDLY STEEL POST MM 62X40 SP 1.65 MT 2.70

1P44046 ECO-FRIENDLY STEEL POST MM 62X40 SP 1.65 MT 3.00

1P44056 ECO-FRIENDLY STEEL POST MM 52X40 SP 1.65 MT 2.50

1P44066 ECO-FRIENDLY STEEL POST MM 52X40 SP 1.65 MT 2.70

1P44076 ECO-FRIENDLY STEEL POST MM 52X40 SP 1.65 MT 2.80
