Galvanized post for vineyards

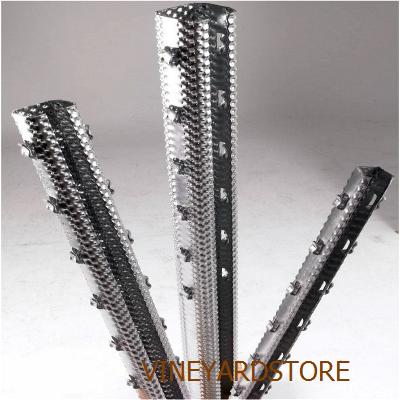

GALVANIZED POST
Are cold-rolled steel post where the hooks are joined outside the main building through a special reinforced seam makes them more robust and less susceptible to the action of deforming machine harvesters.
This type of galvanized post can have different finishes such as hot dip galvanizing, pre-galvanized.

Features


is a next-generation roll-forming technology that significantly increases product performance, including greater load-carrying capacity, higher limiting heights, better acoustical and fire performance and easier installation.
1.    Load performance:
prodoct not only carries higher load, but i salso stiffer.
2.    Improved Features:
have a greater ability to return their original form after loading.
3.    Improved contact with the screw:
ensures that every screw is in contact with a material thickness greater resulting in a significant increase in the torque required to strip-out the screw.
4.    Fire Resistance

5.    Reducing environmental impact:

Products made with the process use less metal, which obviously reduces the impact on the environment and are also more lightweight. Consequent to this pixel feature is the ease of transport and less pollution linked to this as being more light you can send larger amounts of each load


Process

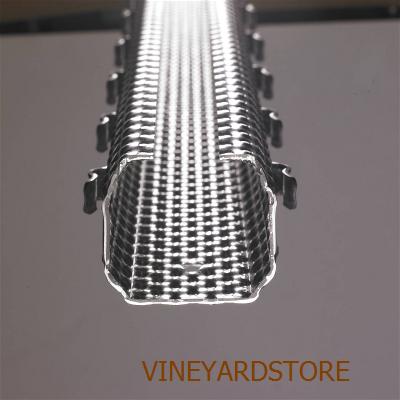

Process is a method of imparting a unique dimpled texture onto the surface of cold formed products.
It is distinguished from other more traditional processes associated with five cold forming in the way the material is poured from the shape of the roll.
The model consists of working the material from both sides simultaneously.
In this way, the material undergoes a large amount of localized stretch, only for the process.
The double helix shape also ensures that the model is uniform throughout the entire range, with no general thinning or weak points.
Through the cross-section of the strip there is a consistent pattern 'wave' formed, which, locally, has a stiffening effect of locally and improves the mechanical properties of the material.
Even more significant is the fact that the process does not require additional material to produce dimples.
To explain the overall effect on the finished part of the process is required psiegazione of what happens when you make the dimples.
In addition to simply shape them into flat area, the process actually improves the mechanical properties of the material and then the final product.
At the microscopic level, the coil of steel is made in training particellecmetalliche minutes or grains.
At trial, the roller pressure on the material causes a significant deformation of those grains and become longer, flat and much stronger than what was previously in flat form.

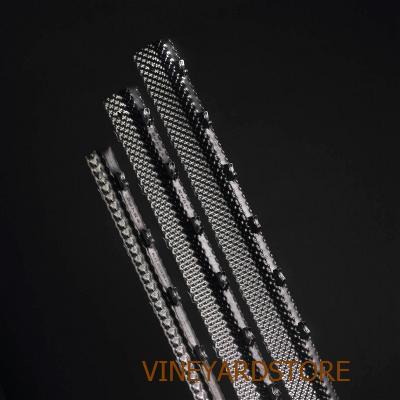

Types of postes

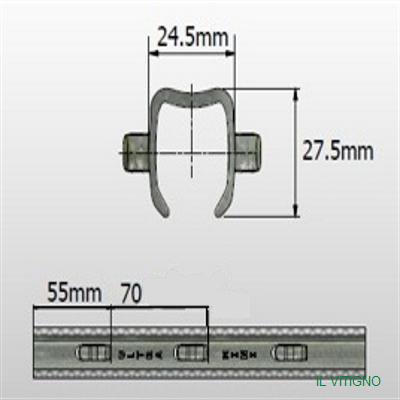

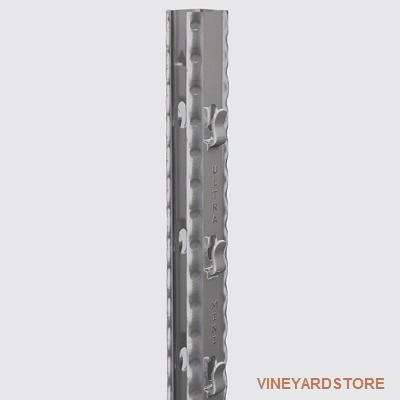

GALVANIZED POST MINI

MINI

TYPOLOGY MINI

DESCRIPTION

Trickness 1,5 mm

Length variable from 1.30 to 1.80
meters.

Type:

Pre-galvanized
Post-galvanized

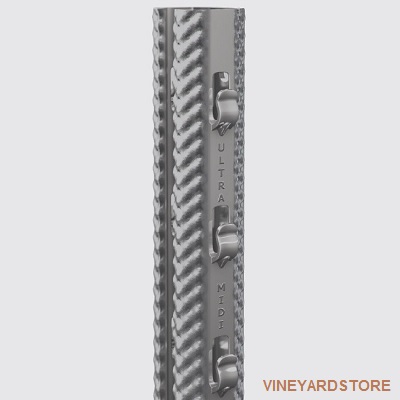

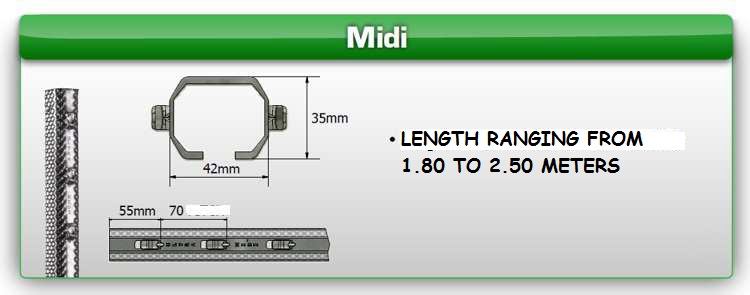

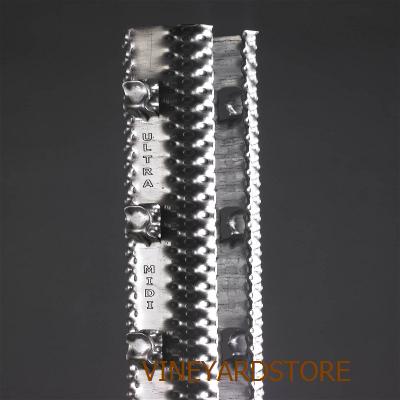

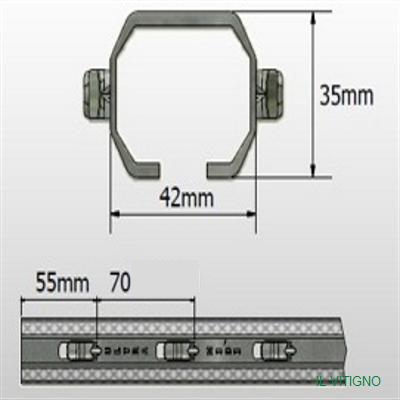

GALVANIZED POST MIDI

MIDI

TYPOLOGY MIDI

DESCRIPTION

Trickness 1,5 mm

Length variable from 1.80 to 2.50
meters.

Type:

Pre-galvanized
Post-galvanized

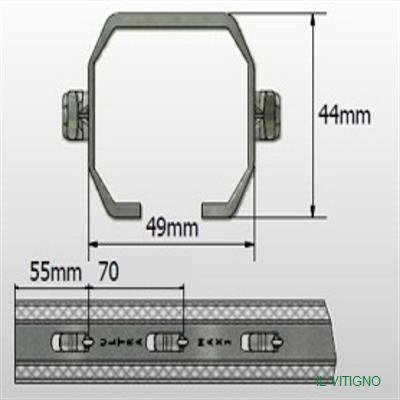

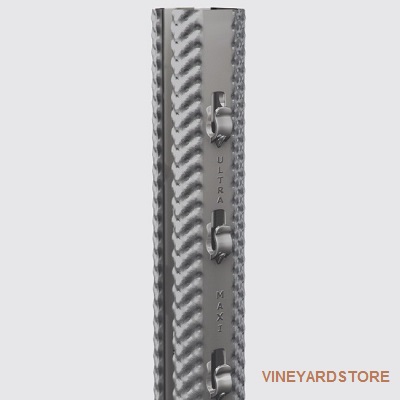

GALVANIZED POST MAXI

MAXI

TYPOLOGY MAXI

DESCRIPTION

Trickness 1,5 mm

Length variable from 2.50 to 2.80
meters.

Type:

Pre-galvanized
Post-galvanized

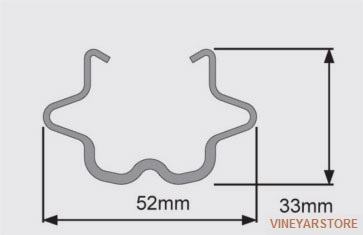

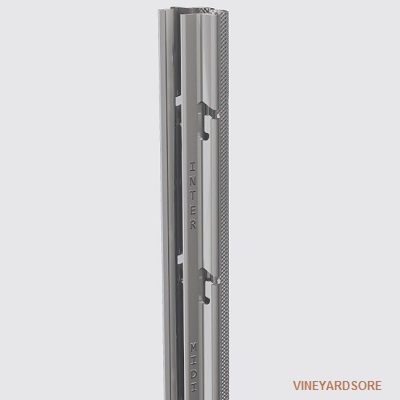

GALVANIZED POST INTERMIDI

tl_files/catalogo/Post_galvanized/galleria/Galvanized_post_intermidi.jpg

TYPOLOGY INTERMIDI

DESCRIPTION

Trickness 1,5 mm

Length variable from 2.50 to 2.75
meters.

Type:

Pre-galvanized
Post-galvanized

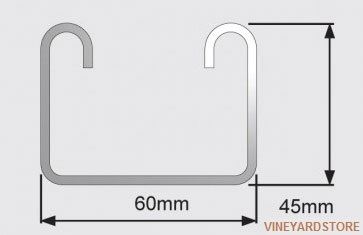

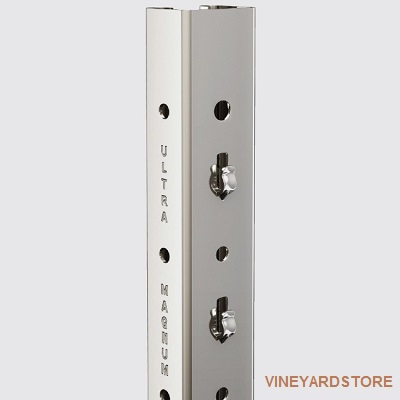

GALVANIZED POST MAGNUM

tl_files/catalogo/Post_galvanized/galleria/Galvanized_post_magnum.jpg

TYPOLOGY MAGNUM

DESCRIPTION

Trickness 2,5 mm

Length variable from 2.50 to 2.75
meters.

Type:

Post-galvanized

GAVANIZED POLE
Item codeItem description
1PB600E POSTE GALVANIZED MAXI 2.0 GALVANIZADO

1PB601E POSTE GALVANIZED MAXI 2.1 GALVANIZADO

1PB602E POSTE GALVANIZED MAXI 2.2 GALVANIZADO

1PB603E POSTE GALVANIZED MAXI 2.3 GALVANIZADO

1PB604E POSTE GALVANIZED MAXI 2.4 GALVANIZADO

1PB605E POSTE GALVANIZED MAXI 2.5 GALVANIZADO

1PB606E POSTE GALVANIZED MAXI 2.6 GALVANIZADO

1PB607E POSTE GALVANIZED MAXI 2.7 GALVANIZADO

1PB608E POSTE GALVANIZED MAXI 2.8 GALVANIZADO

1PB609E POSTE GALVANIZED MIDI 1.8 GALVANIZADO

1PB610E POSTE GALVANIZED MIDI 1.9 GALVANIZADO

1PB611E POSTE GALVANIZED MIDI 2 GALVANIZADO

1PB612E POSTE GALVANIZED MIDI 2.1 GALVANIZADO

1PB613E POSTE GALVANIZED MIDI 2.2 GALVANIZADO

1PB614E POSTE GALVANIZED MIDI 2.3 GALVANIZADO

1PB615E POSTE GALVANIZED MIDI 2.4 GALVANIZADO

1PB616E POSTE GALVANIZED MIDI 2.5 GALVANIZADO

1PBB004 POSTE GALVANIZED MAXI 2.50 PRE-GALVANIZADO

1PBB007 POSTE GALVANIZED MIDI 2.30 PRE- GALVANIZADO GREEN

1PBB014 POSTE GALVANIZED MAXI 2.1 PRE-GALVANIZADO

1PBB024 POSTE GALVANIZED MAXI 2.2 PRE-GALVANIZADO

1PBB034 POSTE GALVANIZED MAXI 2.3 PRE-GALVANIZADO

1PBB044 POSTE GALVANIZED MAXI 2.4 PRE-GALVANIZADO

1PBB054 POSTE GALVANIZED MAXI 2.5 PRE-GALVANIZADO

1PBB064 POSTE GALVANIZED MAXI 2.6 PRE-GALVANIZADO

1PBB074 POSTE GALVANIZED MAXI 2.7 PRE-GALVANIZADO

1PBB084 POSTE GALVANIZED MAXI 2.8 PRE-GALVANIZADO

1PBB094 POSTE GALVANIZED MIDI 1.85 PRE-GALVANIZADO

1PBB104 POSTE GALVANIZED MIDI 1.9 PRE-GALVANIZADO

1PBB114 POSTE GALVANIZED MIDI 2. PRE-GALVANIZADO

1PBB124 POSTE GALVANIZED MIDI 2.1 PRE-GALVANIZADO

1PBB134 POSTE GALVANIZED MIDI 2.2 PRE-GALVANIZADO

1PBB144 POSTE GALVANIZED MIDI 2.3 PRE-GALVANIZADO

1PBB154 POSTE GALVANIZED MIDI 2.4 PRE-GALVANIZADO

1PBB164 POSTE GALVANIZED MIDI 2.5 PRE-GALVANIZADO

1PBB174 POSTE GALVANIZED MIDI 2.30 COLOR GREEN
