Post T for vineyards

The Vineyards is always attentive to the needs of the customers, he has found the right way to use the poles T, which is usually used in fences, adapting it for use in viticulture, which in the Franciacorta is one of the posts that have more widespread.

The posts T for vineyards, are manufactured to meet the needs of customers for both holes and slots.

The end post presents a measurement of 50 mm x 50 mm x 6 mm thick (50x50x6) while the pole rows a measure 40 mm x 40 mm x 4.5 mm thick (40x40x4,5)

Unfortunately, due to the high thickness employed, the hole diameter can not 'be less than ø 9 mm and the slots may have as measuring 18 mm high by 5 mm wide.
Usually, the end post presents only of the holes, because the slots are not required.
The pole rows instead, can 'be done either with slots that coupled with staggered slots.

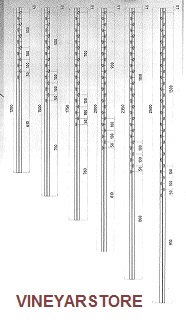

For the slots staggered the distance between a slot and the other is 50 cm.

To choose this type of pole, we recommend as a finish of the pole or the CORTEN CORTEN + plastic-green. Both are excellent solutions depending on the soil to be planted where is more or less acid.

We would like to make a clarification on CORTEN, as often this thing can 'escape. Just bought the stakes for vineyard in corten occur in color Griglio dark / black, with the succession of days thanks to the exposure of the weather, undergo a change getting a color tending to orange / brown. This coating that is formed is not considered a defect but an improvement to the post. In fact, for the post in Corten viticulture the "rust" is required because it allows the pole mimettizzarsi vegetation. A prerogative of the pole in Corten is to protect themselves from exposure Atmospheric forming a film that prevents corrosion.

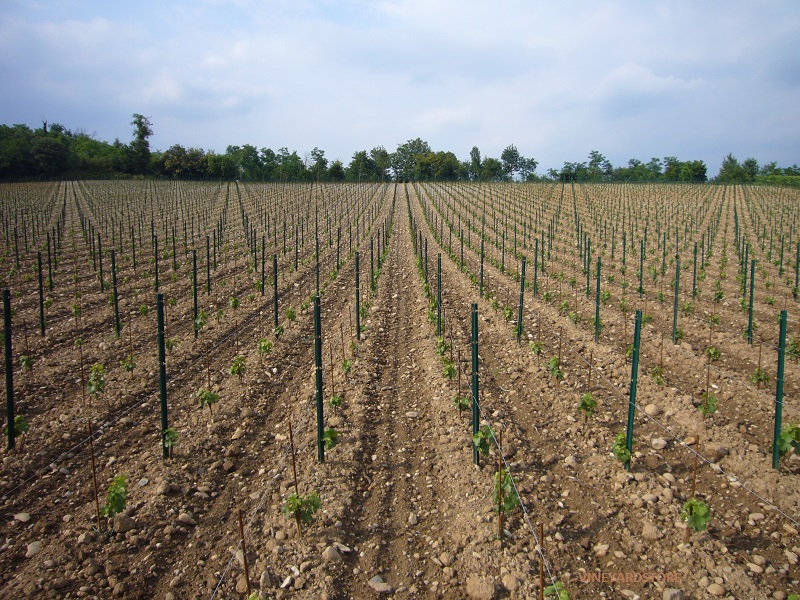

Both poles T vineyard in Corten, at both poles for vineyard in corten plasticized green are poles that are granted in areas of territorial restrictions.

Below we present more details for each section:

Posts T for Vineyards

END POST

the end post presents a measurement of 50 mm x 50 mm x 6 mm thick (50x50x6), and usually, the end post presents only of the holes, because the slots are not required.
Upon request, the pole can 'be achieved with tip.
The hook that has the post, serves during the coating phase.

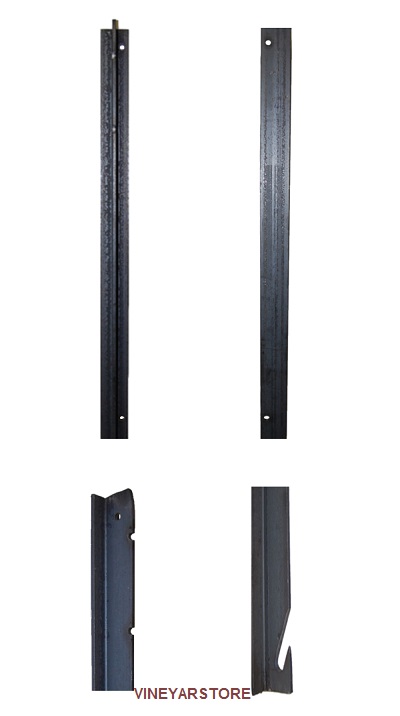

1) Post T per Vineyard in Corten (End Post)

tl_files/catalogo/Post_T_for_vineyards/galleria/Post_T_Corten.jpg]

POSTS T FOR VINEYARDS

END POST

FINISH CORTEN

SECTION - WEIGHT

50X50X6,00 - Kg. 6,50 ML

AVAILABLE HEIGHTS

MM 1800
MM 2000
MM 2500
MM 3000

It can be made:

  • Galvanized hot Steel

  • Steel Corten

  • Polyester

  • Galvanized steel phosphating+green polyester cover and/or anthracite

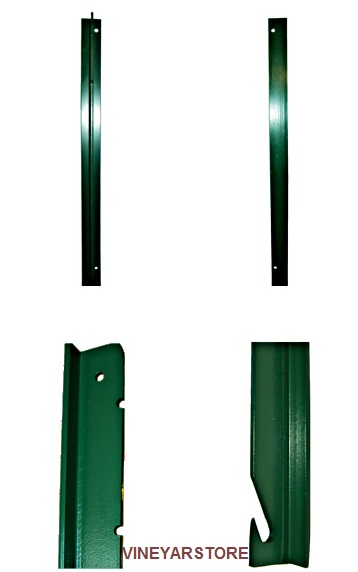

2) Post T for Vineyard in Corten+phsphating+polyester cover (End post)

tl_files/catalogo/Post_T_for_vineyards/galleria/Post_T_Polyester.jpg

POSTS T FOR VINEYARDS

END POST

FINISH CORTEN+POLYESTER

SECTION - WEIGHT

50X50X6,00 - Kg. 6,50 ML

AVAILABLE HEIGHTS

MM 1800
MM 2000
MM 2500
MM 3000

It can be made:

  • Galvanized hot Steel

  • Steel Corten

  • Polyester

  • Galvanized steel phosphating+green polyester cover and/or anthracite

POST INTERROW

The post rows presents a measure of 40 mm x 40 mm x 4.5 mm thick (40x40x4,5). This type of pile on request we can make holes and slots that can be coupled or staggered. Upon request, the pole can 'be achieved with tip. The hook that has the post, serves during the coating phase.

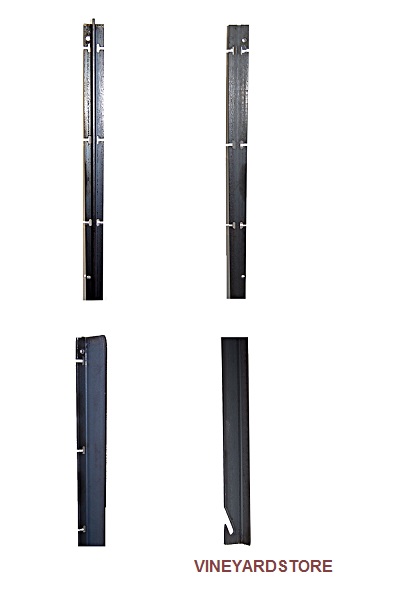

1)Post T per Vineyard in Corten (Post row slots coupled)

tl_files/catalogo/Post_T_for_vineyards/galleria/Post_T_viticulture_Corten.jpg

POSTS T FOR VINEYARDS

POST ROW

CORTEN

SLOTS COUPLED

SECTION - WEIGHT

40X40X4,5 - Kg. 2,80 ML

AVAILABLE HEIGHTS

MM 1700
MM 2000
MM 2500

It can be made:

  • Galvanized hot Steel

  • Steel Corten

  • Polyester

  • Galvanized steel phosphating+green polyester cover and/or anthracite

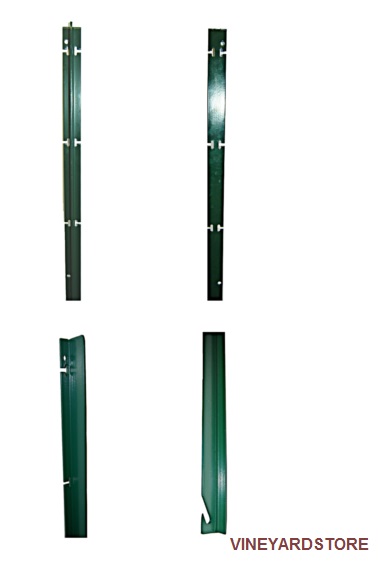

2) Post T for Vineyards in Corten+phosphate+polyester cover (Post row slots coupled)

tl_files/catalogo/Post_T_for_vineyards/galleria/Post_T_viticulture_plasticized.jpg

POSTS T FOR VINEYARDS

POST ROW

CORTEN

SLOTS COUPLED

SECTION - WEIGHT

40X40X4,5 - Kg. 2,80 ML

AVAILABLE HEIGHTS

MM 1700
MM 2000
MM 2500

It can be made:

  • Galvanized hot Steel

  • Steel Corten

  • Polyester

  • Galvanized steel phosphating+green polyester cover and/or anthracite

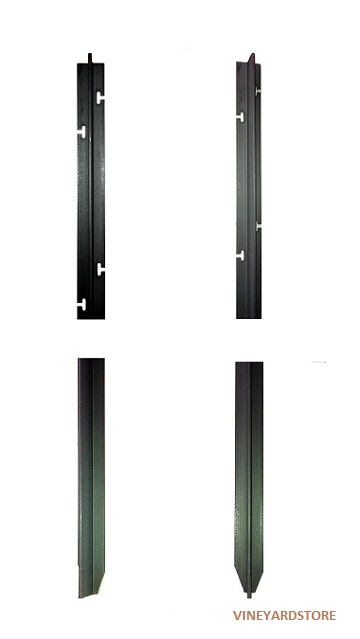

3) Post T for Vineyards in Corten (Post row staggered slots)

tl_files/catalogo/Post_T_for_vineyards/galleria/Posts_T_straggered_slots.jpg

POSTS T FOR VINEYARDS

POST ROW

CORTEN

STAGGERED SLOTS

SECTION - WEIGHT

40X40X4,5 - Kg. 2,80 ML

AVAILABLE HEIGHTS

MM 1700
MM 2000
MM 2500

It can be made:

  • Galvanized hot Steel

  • Steel Corten

  • Polyester

  • Galvanized steel phosphating+green polyester cover and/or anthracite
