Post C for vineyards inner slots

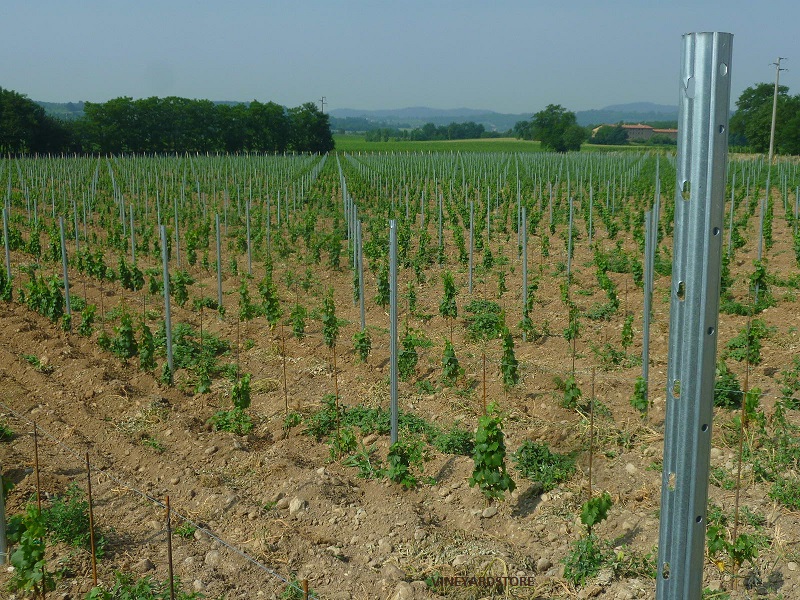

This type of post C for vineyards with inner slots, is ideal for vineyards high mechanization.

And a post made of galvanized steel DX 51D Z 275 EN 10327
Galvanized steel DD11 EN 10111 hot-dip and 80 microns unleaded.

The shape of the profile and the rib of the pole, combined with the quality of steel used, give this post to C vineyards for a great mechanical strength, flexibility and stability especially in the ground.

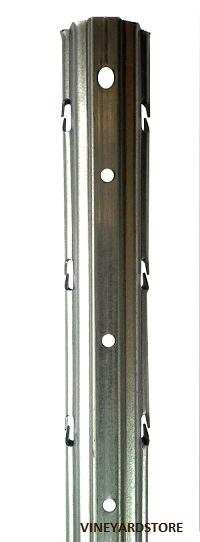

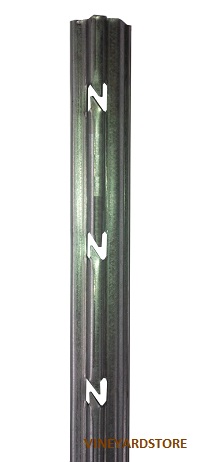

This post is provided with slots passes thread internal type, and it has been studied to make very practice the phase of insertion of the wire avoiding their accidental release.

This post is very powerful and thanks to the absence of sharp edges is greatly facilitated both the phase of pre-pruning is the stage of harvest and be assured that if you used the batsmen, they are not damaged.

This post C for vineyards is made of:

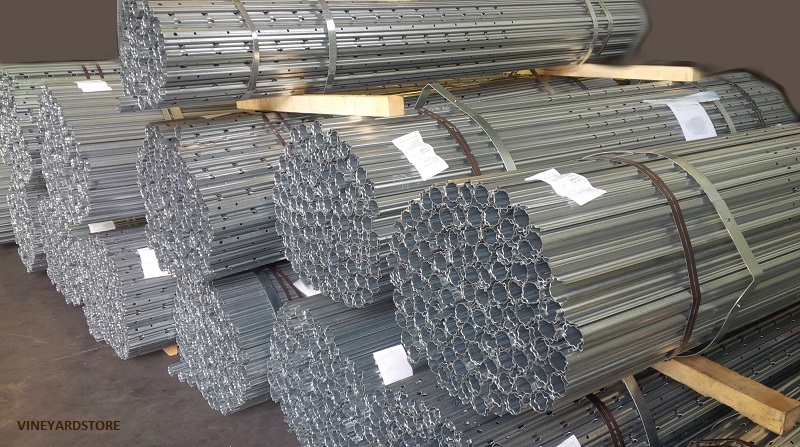

  • Pre-galvanized steel, comes in gray glossy

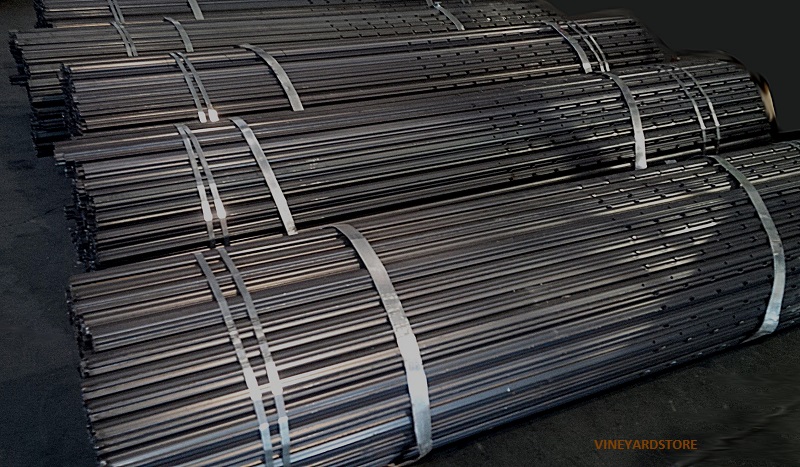

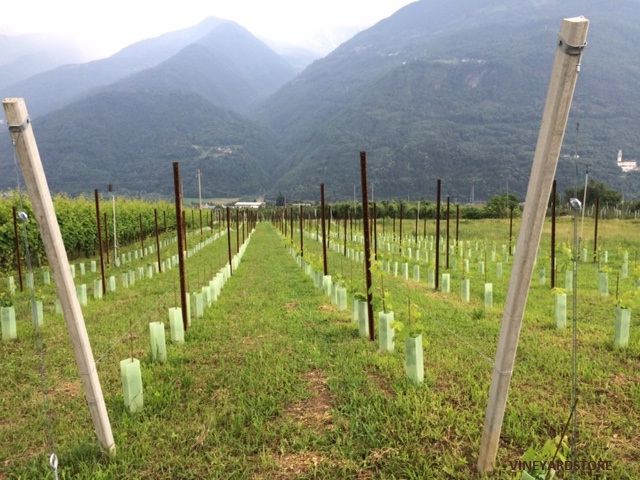

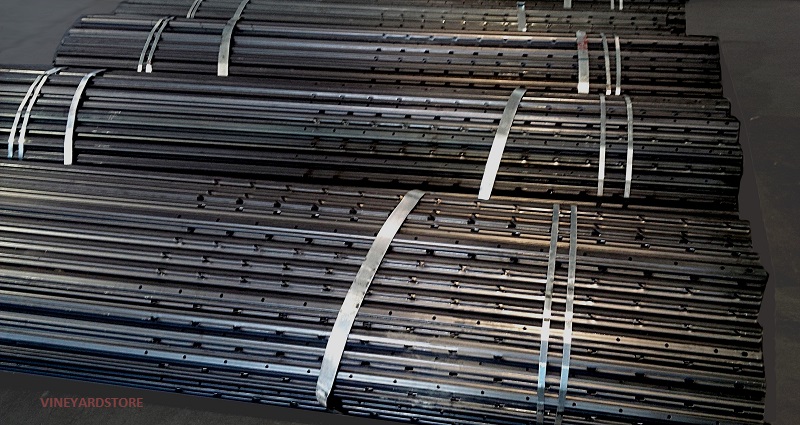

  • COR-TEN steel ideal for those with territorial constraints, you just bought this black, upon contact with the air will form a patina Brown, this allows the pole to better blend into the vegetation

  • Hot galvanized steel, comes in gray opaque, this finish is recommended for those who are close to the sea, that because of the saltiness could undergo corrosion on the pole only pre-galvanized.

  • Galvanized steel with polyester cover, this pole can 'be of dark brown color, this finish is required by those who want that his post is entirely inert to the ground and for those who, for an aesthetic like the post painted.

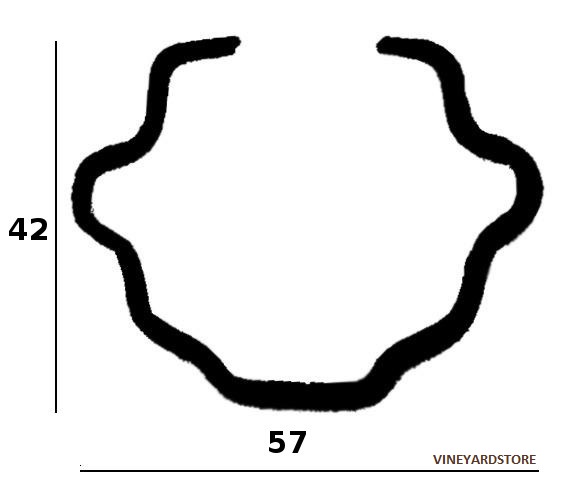

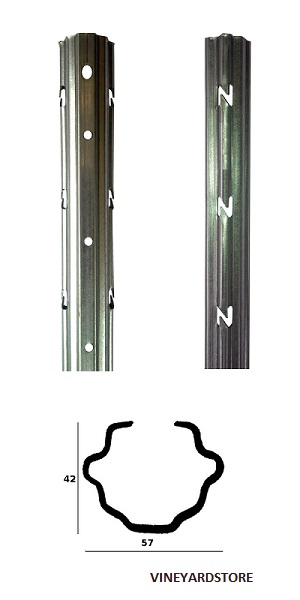

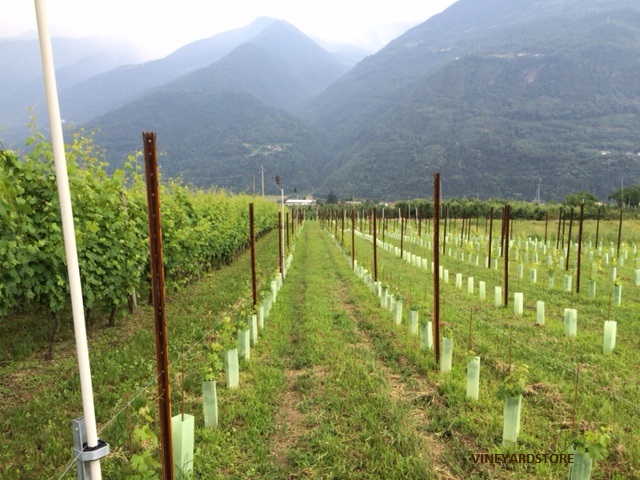

POSTS C FOR VINEYARDS INNER SLOTS (PROFIL 57X42 MM)

tl_files/catalogo/Post_C_for_vineyards-inner-slots/galleria/Post-C-for-vineyards-inner-slots.jpg

POST C FOR VINEYARD
INNER SLOTS 57X42 MM
(POST INTERROW)

SECTION - WEIGHT ML

mm. 1,50 - Kg. 1,52
mm. 1,80 - Kg. 1,83
mm. 2,00 - Kg. 2,02

It can be made:

  • Galvanized hot Steel

  • Steel Corten

  • Polyester

  • Galvanized steel phosphating+green polyester cover and/or anthracite

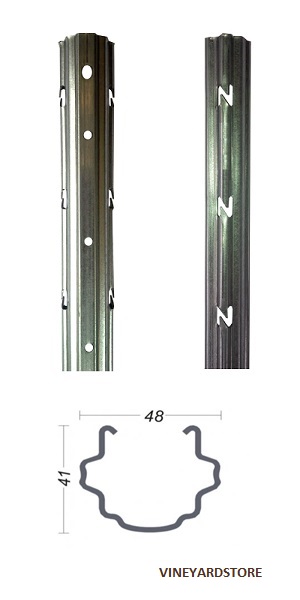

POSTS C FOR VINEYARDS INNER SLOTS (PROFIL 48X41 MM)

tl_files/catalogo/Post_C_for_vineyards-inner-slots/galleria/Post_C_for_vineyard_48X41.jpg

POST C PER VINEYARD
INNER SLOTS 48X41 MM
(POST INTERROW)

SECTION - WEIGHT ML

mm. 1,50 - Kg. 1,41
mm. 1,80 - Kg. 1,69

It can be made:

  • Galvanized hot Steel

  • Steel Corten

  • Polyester

  • Galvanized steel phosphating+green polyester cover and/or anthracite

POST OF HEAD (PROFIL 58X68 MM)
POSTS TO USE AS HEAD POSTS FOR INTERROW POST

tl_files/catalogo/pali_profil_alsace/galleria/Poles_Capostabile_58x68_poles_type_profil_alsace_BP5E.jpg

POSTS HEAD 58X68
(POST HEAD FOR ROW VERY LONG)

It can be made:

Galvanized hot Steel
SECTION - WEIGHT ML

  mm. 2,00 - Kg. 3,40
  mm. 2,50 - Kg. 4,20

Steel Corten
SECTION - WEIGHT ML

  mm. 1,50 - Kg. 2,50
on request thickness mm 2,00

Galvanized hot Steel
SECTION - WEIGHT ML

  mm. 2,00 - Kg. 3,25
  mm. 2,50 - Kg. 4,00
