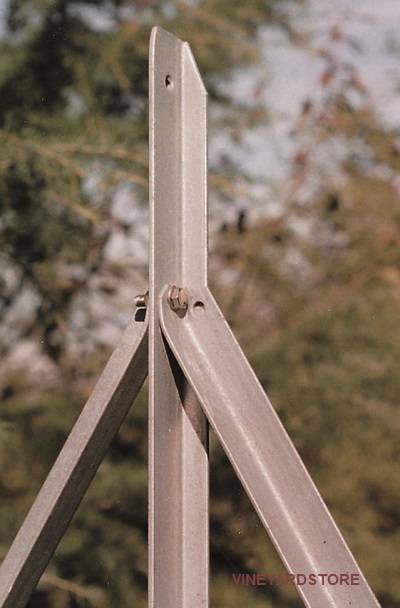

The Post T for fences is one of the poles which is best suited to support the metal fences and deleted, even though in reality the pole to T to fence with some changes may 'also be employed to viticoluta, but the pole in T to vineyards we talk about it in the section dedicated to the vineyard poles.

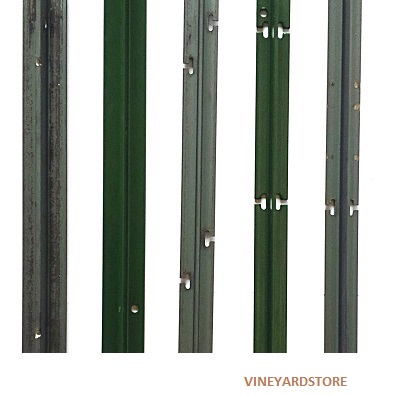

In this section we want to treat many types of T-poles for fencing even if we consider that with a pole classic never wrong.
Below we listed the models of T-poles for fencing we can do:
Below we present more details for each section:

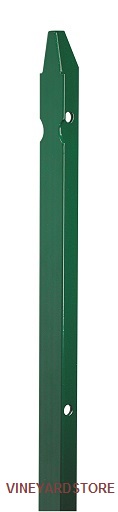

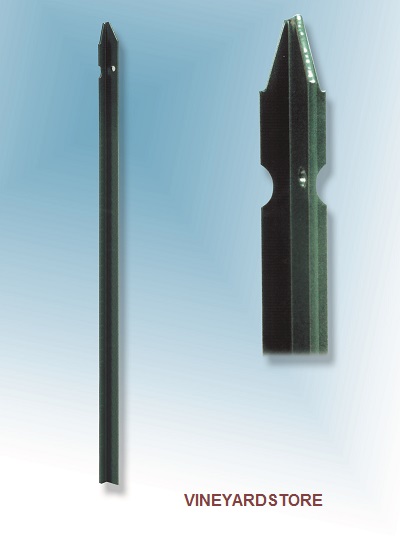

POST T STANDARD FOR FENCES
|
|
POST T STANDARD FOR FENCES
HEIGHT - SECTION - WEIGHT ML
CM 100 - 30X30X3,5 - Kg. 1,50
CM 125 - 30X30X3,5 - Kg. 1,88
CM 150 - 30X30X3,5 - Kg. 2,25
CM 175 - 30X30X3,5 - Kg. 2,63
CM 200 - 30X30X3,5 - Kg. 3,00
CM 233 - 30X30X3,5 - Kg. 3,50
HEIGHT - SECTION - WEIGHT ML
CM 200 - 35X35X4,0 - Kg. 3,80
CM 225 - 35X35X4,0 - Kg. 4,28
CM 250 - 35X35X4,0 - Kg. 4,75
CM 295 - 35X35x4,0 - Kg. 5,70
HEIGHT - SECTION
CM 250 - 40X40X4,5
CM 270 - 40X40X4,5
CM 295 - 40X40X4,5
HEIGHT - SECTION
CM 250 - 40X40X5
CM 270 - 40X40X5
CM 295 - 40X40X5
HEIGHT - SECTION
CM 250 - 50X50X6
CM 270 - 50X50X6
CM 295 - 50X50X6
HEIGHT - SECTION
CM 250 - 60X60X7
CM 270 - 60X60X7
CM 295 - 60X60X7
It can be made of:
-

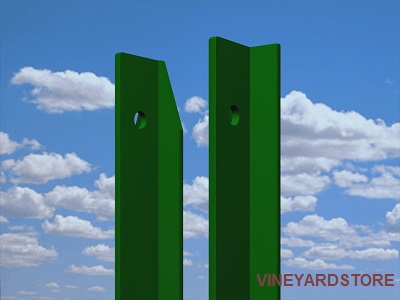

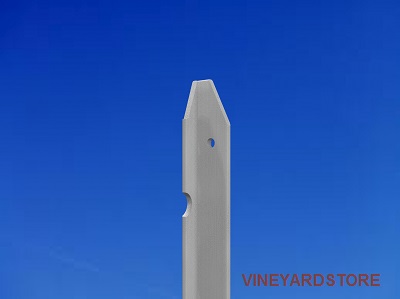

Hot-dip galvanized steel
-
COR-TEN
|
POST T FENCES FOR LIGHTWEIGHT
|
|
POST T FENCES FOR LIGHTWEIGHT
HEIGHT - SECTION - WEIGHT ML
CM 100 - 30X30X3 - Kg. 1,30
CM 125 - 30X30X3 - Kg. 1,63
CM 150 - 30X30X3 - Kg. 1,95
CM 175 - 30X30X3 - Kg. 2,28
CM 200 - 30X30X3 - Kg. 2,60
CM 233- 30X30X3 - Kg. 3,03
CM 200 - 35X35X3,5 - Kg. 3,50
CM 225 - 35X35X3,5 - Kg. 3,94
CM 250 - 35X35X3,5 - Kg. 4,38
It can be made of:
|
POST T SPECIAL FOR FENCES
|
|
POST T SPECIAL FOR FENCES
HEIGHT - SECTION - WEIGHT ML
CM 108 - 30X30X5 - Kg. 2,38
CM 130 - 30X30X5 - Kg. 2,86
CM 160 - 30X30X5 - Kg. 3,52
CM 182 - 30X30X5 - Kg. 4,00
CM 208 - 35X35X5,5 - Kg. 6,10
CM 235 - 35X35X5,5 - Kg. 6,88
CM 255 - 35X35X5,5 - Kg. 7,47
It can be made of:
|
|
