Springs

Accessories for the shoots paling management by containing mobile wires, inserted in the eyelet at the end of a metal spacer that is fixed to the pole. When the spacers are open the two wires are at a distance of 45 cm. from each other allowing the spontaneous entry of vegetation, when they are closed (manually by the operator when the vegetation is sufficiently grown) they are raised by 20 cm. respect to the anchor point of the spacer and tighten their distance from 45 to 5 cm. In this way the vegetation is limited in width and directed upward with an operation that for the operator means only to walk from one pole to another and pick up the wire locking the spacer located on the pole.

This accessory allows indeed to manage the pair of wires without disconnecting them. In particular:

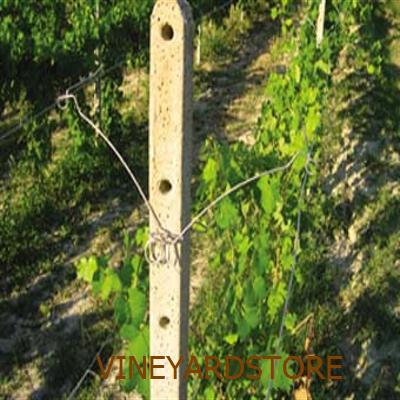

- with open spring, the pair of wires remain very wide apart in order to allow the vine-shoots to grow within

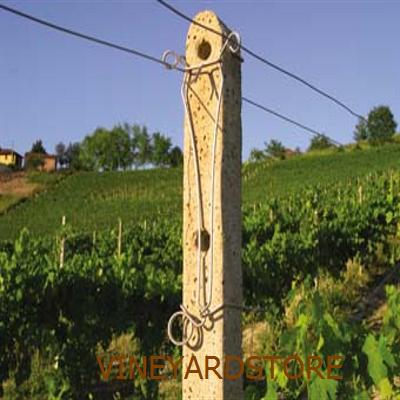

- with closed spring, the vegetation is pushed towards the pole and forced to continue the upward growth. This operation shall be made before the mechanical harvesting

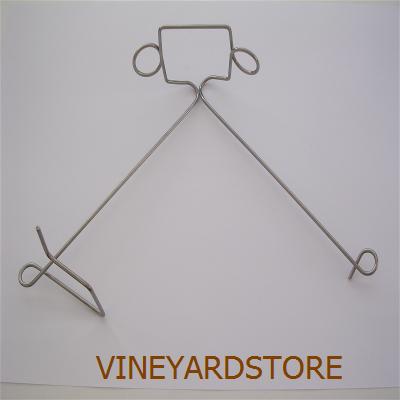

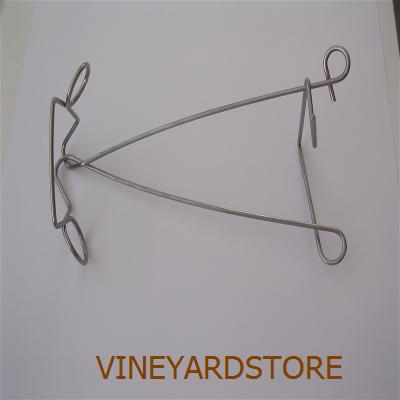

MOBILE SPRING FOR CONCRETE POLES

Molla distanziatrice pali in cemento




MOBILE SPACER FOR DOUBLE WIRES WITH CONNECTION AND FIXING AT THE CONCRETE POLE



in stainless steel "AISI 302" 2.80 mm



DESCRIPTION

Mobile spring concrete pole 5X5
Mobile spring concrete pole 6X6
Mobile spring concrete pole 7X7
Mobile spring concrete pole 8X8
Mobile spring concrete pole 9X9

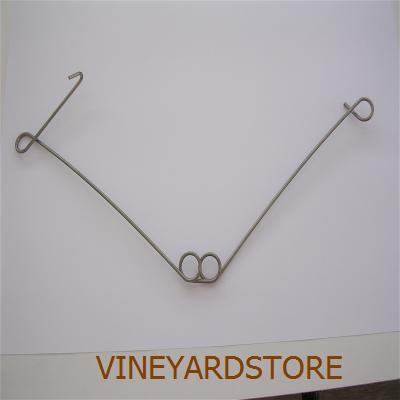

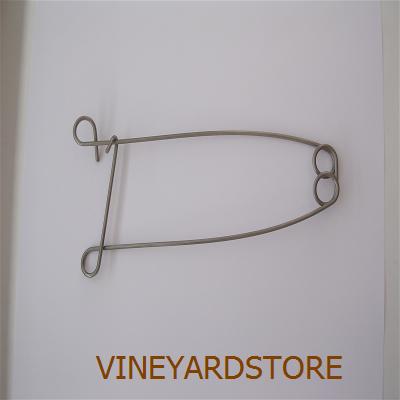

SPRING FOR WOODEN POLES

Molla distanziatrice pali in legno



MOBILE SPACER WITH DOUBLE WIRES WITH FIXING TO THE WOOD POLE THROUGH STAPLES



stainless steel "AISI 302" 2.80 mm

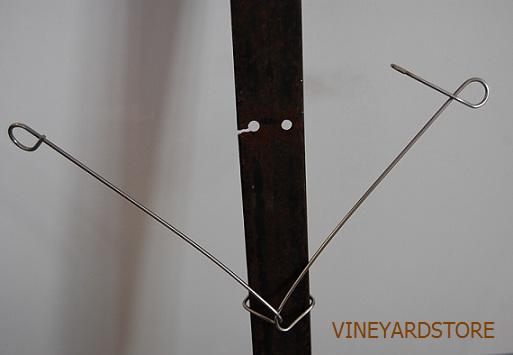

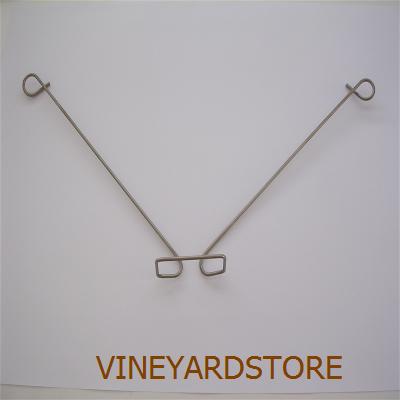

SPRING FOR METAL POLES

Molla per pali in metallo



DOUBLE WIRES MOBILE SPACERS FOR METAL POLES



stainless steel "AISI 302" 2.50 mm
on request on different types of pole



DESCRIPTION

Spring iron pole mis. 52x40

Spring customized iron pole        mis. 62x40

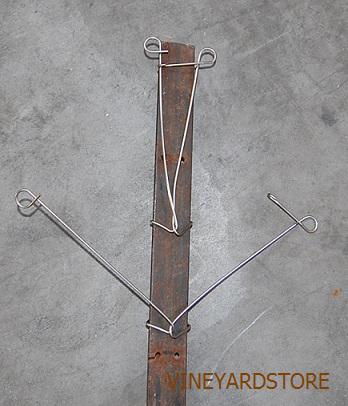

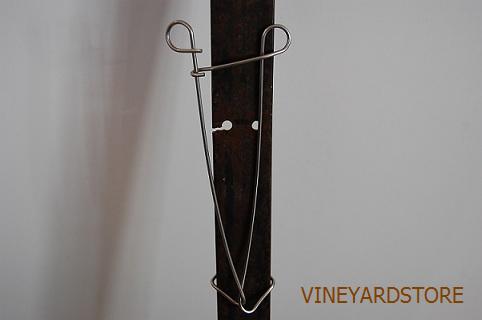

PRING FOR RECMET POLES

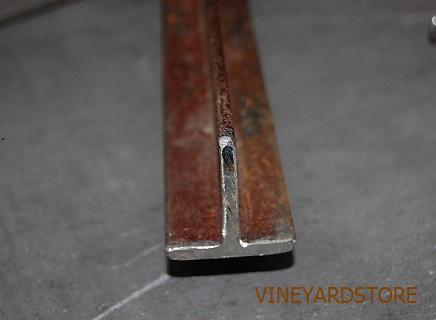

DOUBLE WIRES MOBILE SPACERS FOR RECMET METAL POLES ( T poles)

stainless steel "AISI 302" 2.50 mm
on request on different types of pole
